Accelerate a simple EM algorithm with DAAREM

This example demonstrates amica.optim.AndersonEMAccelerator on a small mixture-proportion maximum-likelihood problem. It is adapted from the Stephens Lab DAAREM mixture EM tutorial: https://stephenslab.github.io/daarem/mixem.html

To use DAAREM acceleration in AMICA, pass optimizer=”daarem” to the AMICA constructor.

import matplotlib.pyplot as plt
import numpy as np
import rdata
import torch

from amica.optim import AndersonEMAccelerator
from amica.utils import fetch_daarem_mixdata


def load_reference_likelihood_matrix():
    """Load the original Stephens Lab tutorial likelihood matrix."""
    data_path = fetch_daarem_mixdata()
    return np.asarray(rdata.read_rda(data_path)["L"], dtype=np.float64)


def project_simplex(x):
    """Project an iterate onto the probability simplex."""
    x = np.maximum(np.asarray(x, dtype=np.float64), 0.0)
    total = x.sum()
    if total == 0:
        return np.full_like(x, 1.0 / x.size)
    return x / total


def mixem_update(L, x, eps=1e-15):
    """Perform one EM update for mixture proportions."""
    row_eps = eps * L.max(axis=1)
    posterior = L * x + row_eps[:, None]
    posterior = posterior / posterior.sum(axis=1, keepdims=True)
    return posterior.mean(axis=0)


def mixobjective(L, x, eps=1e-15):
    """Evaluate the mixture log-likelihood."""
    return np.log(L @ x + eps * L.max(axis=1)).sum()


def fit_em(L, x0, n_iter):
    """Run plain EM for a fixed number of iterations."""
    x = x0.copy()
    values = []
    for _ in range(n_iter):
        x = mixem_update(L, x)
        values.append(mixobjective(L, x))
    return x, np.asarray(values)


def fit_daarem(L, x0, n_iter, order=5):
    """Run DAAREM-style acceleration over consecutive EM updates."""
    accelerator = AndersonEMAccelerator(
        order=order,
        monotone=True,
        epsilon_monotone=.01,
    )
    x = mixem_update(L, x0)
    values = [mixobjective(L, x)]
    accelerator.update(
        x=torch.as_tensor(x0, dtype=torch.float64),
        g=torch.as_tensor(x, dtype=torch.float64),
    )

    for _ in range(1, n_iter):
        plain = mixem_update(L, project_simplex(x))
        plain_value = mixobjective(L, plain)
        accelerator.update(
            x=torch.as_tensor(project_simplex(x), dtype=torch.float64),
            g=torch.as_tensor(plain, dtype=torch.float64),
        )
        proposal = accelerator.propose()
        if proposal is not None:
            candidate = project_simplex(proposal.candidate.numpy())
            candidate_value = mixobjective(L, candidate)
            if candidate_value >= plain_value:
                x = candidate
                values.append(candidate_value)
                accelerator.accept()
                accelerator.update_cycle_monotonicity(
                    loglik=candidate_value,
                    history=proposal.history,
                )
                continue
            accelerator.update_cycle_monotonicity(
                loglik=plain_value,
                history=proposal.history,
            )
            accelerator.reject()
        x = plain
        values.append(plain_value)

    return project_simplex(x), np.asarray(values)

Set up a deterministic mixture problem.

L = load_reference_likelihood_matrix()
n_mixtures = L.shape[1]
x0 = np.full(n_mixtures, 1.0 / n_mixtures)
n_iter = 200

  0%|                                              | 0.00/6.86M [00:00<?, ?B/s]
 57%|████████████████████▉                | 3.89M/6.86M [00:00<00:00, 38.9MB/s]
  0%|                                              | 0.00/6.86M [00:00<?, ?B/s]
100%|█████████████████████████████████████| 6.86M/6.86M [00:00<00:00, 25.9GB/s]

Compare plain EM and DAAREM.

em_weights, em_values = fit_em(L, x0, n_iter=n_iter)
daarem_weights, daarem_values = fit_daarem(L, x0, n_iter=n_iter, order=5)

print(f"EM final log-likelihood: {em_values[-1]:.6f}")
print(f"DAAREM final log-likelihood: {daarem_values[-1]:.6f}")
print(f"Improvement: {daarem_values[-1] - em_values[-1]:.6f}")

np.testing.assert_allclose(em_weights.sum(), 1.0)
np.testing.assert_allclose(daarem_weights.sum(), 1.0)
assert daarem_values[-1] > em_values[-1]
np.testing.assert_allclose(daarem_values[-1], -59895.960056733769, atol=0.2)

EM final log-likelihood: -59912.068371
DAAREM final log-likelihood: -59896.009372
Improvement: 16.059000

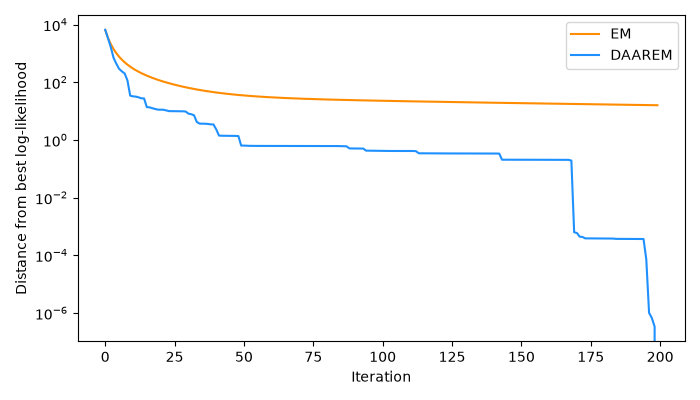

Plot convergence.

best_value = max(em_values.max(), daarem_values.max())
fig, ax = plt.subplots(figsize=(7, 4))
ax.plot(best_value - em_values, label="EM", color="darkorange")
ax.plot(best_value - daarem_values, label="DAAREM", color="dodgerblue")
ax.set_yscale("log")
ax.set_xlabel("Iteration")
ax.set_ylabel("Distance from best log-likelihood")
ax.legend()
fig.tight_layout()
plt.show()
